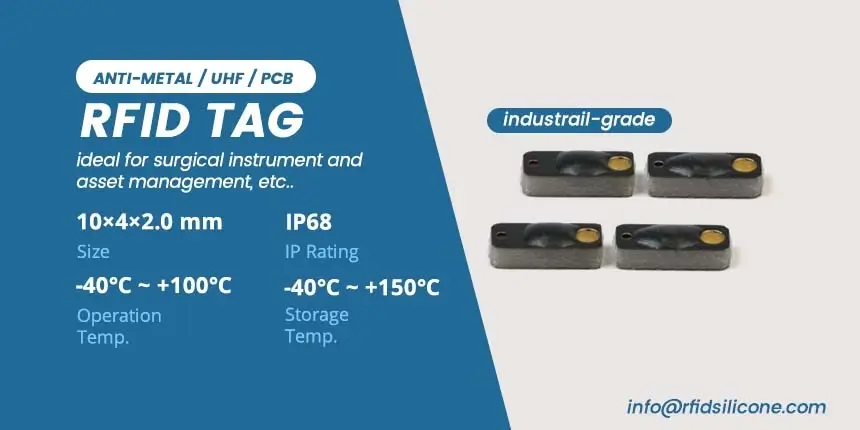

Anti-metal · Industrial-grade PCB tag · Long read range · Mini size · Waterproof IP68
UHF anti-metal RFID tag is made of FR-4 (PCB) material, making it robust and durable. Its ultra-small size and anti-metal properties, along with the embedded Alien Higgs-3 chip, make it suitable for a wide range of applications, including medical device management.
UHF anti-metal RFID tag complies with REACH, RoHS, and CE standards, and its compact size makes it suitable for applications such as surgical instrument management and asset management. Contact CXJ RFIDSilicone to source the precise industrial RFID PCB tags your application demands.

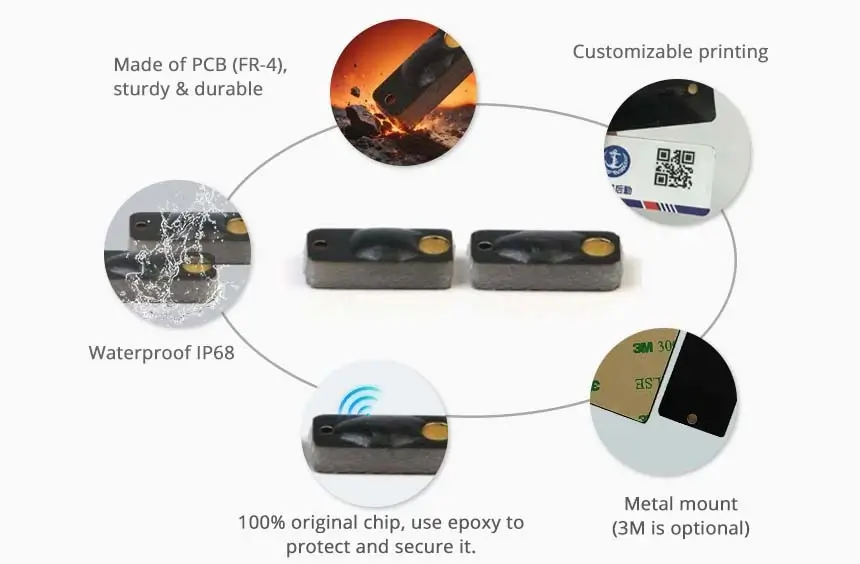

Made of PCB, sturdy and durable.
Waterproof IP68.
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.
Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT1004 |
|
Material |
FR4 (PCB) |
|
Size |
10x4mm, (Hole: D2.0mm) |
|
Thickness |
2mm without IC bump, 3.0mm with IC bump |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Alien Higgs-3 |
|
Reading distance |
Up to 0.9~1.35m approx. (It depends on reader, tags and environment etc) |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
Surgical Instrument Management, Asset Management, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
Wholesale PCB Anti Metal RFID Tag for Asset Tracking |
|||||
|
Model |
RS-PT1004 |
|||||
|
Material |
FR4 (PCB) |
|||||
|
Size |
10×4×2mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Alien Higgs-3 |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 0.9~1.35m approx. (It depends on reader, tags and environment etc) |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
Surgical Instrument Management, Asset Management, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
