Lightweight · Flexible · Washable · Printable · Cost-Effective · Quick Dry
RFID chip on clothing refers to a polyester RFID tag embedded or attached to garments for automatic identification and tracking. It enables efficient management of uniforms, workwear, hospitality linens, and healthcare textiles throughout their lifecycle.
RFID Chip on Clothing helps organizations track stock accurately and see assets in real time. Its polyester cover protects the chip from water, heat, and damage, so it works well through many washes and handling. CXJ RFIDSilicone's RFID laundry tags are available in a wide range of materials, sizes, and chip options.

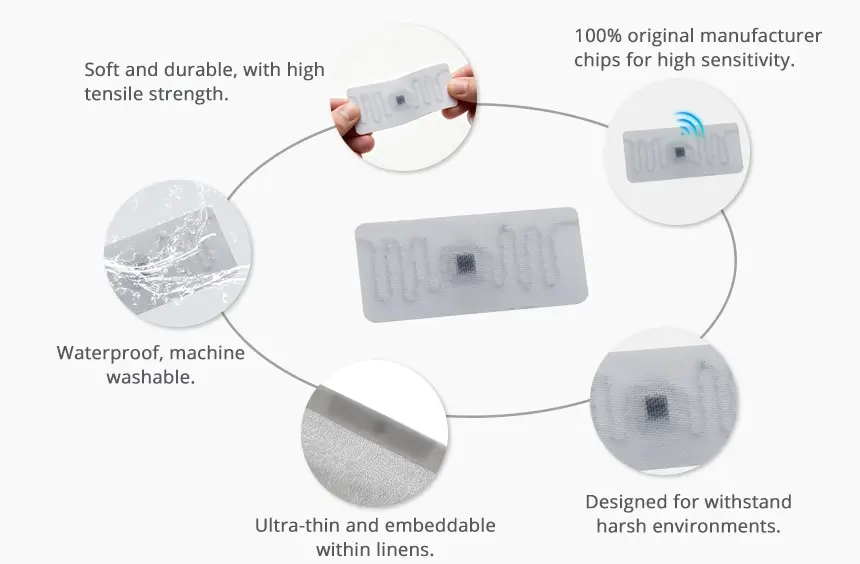

Made of polyester, soft, flexible and ultra-thin.
Machine washable, waterproof & durbale
Printable.
Stable read performance, supports read in bulk.
Can be embedded within textiles.
Available in a variety of sizes and specifications.
|
Model |
RS-RLT22 |
|
Material |
Polyester |
|
Size |
35×15mm |
|
Frequency |
UHF 860~960MHz |
|
Chip |
NXP UCODE 9 |
|
Read distance |
6-7m(Fixed reader, 30dBm/9dBi), 1-4m(Handheld reader, 30dBm/4dBi) |
|
Data Retention |
10 years |
|
Operating temperature |
-40℃ to 85℃ |
|
Life time |
200 times industrial washing |
|
Application |
Linens Managenemt, Uniform Management, Hospital Laundry Management, Hotel Laundry Management, Industrial Textile Management, etc. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Perfect solution for variety of applications including dry cleaner, washing uniform, hotel bath towel smart laundry management.
|
Product name |
Washable RFID Chip On Clothing for Garment Management Supplier |
|
Model |
RS-RLT22 |
|
Material |
Polyester |
|
Size |
35×15mm |
|
Frequency |
UHF 860~960MHz |
|
Chip |
NXP UCODE 9 |
|
Protocol |
ISO8000-6C |
|
Read distance |
6-7m(Fixed reader, 30dBm/9dBi), 1-4m(Handheld reader, 30dBm/4dBi) |
|
Operating Mode |
Passive |
|
Life time |
100 to 150 times industrial washing cycles |
|
Working temperature |
85℃ bearable |
|
Data Retention |
10 years |
|
Application |
Linens Managenemt, Uniform Management, Hospital Laundry Management, Hotel Laundry Management, Industrial Textile Management, etc. |
|
MOQ |
500pcs |
|
Sample availability |
Free samples are available upon request. |
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available 125KHz Chip |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available 13.56MHz Chip |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available 860-960MHz Chip |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
