RFID PCB tags are RFID chip modules, the antenna is integrated in the PCB (printed circuit board), and an extra capacitor can be easily installed to increase the reading distance of the tag. Various sizes and shapes, round, square or customized. Contact Us Now

5*5mm Smallest RFID Tag HF/UHF PCB Tags for Small Tools

5*5mm Smallest RFID Tag HF/UHF PCB Tags for Small Tools

Micro PCB RFID tags, high temperature resistant, anti-corrosion, waterproof, anti-metal & liquid friendly.

Product Spec

Model : RS-RPT01
Material : PCB (FR4 + epoxy layer)
Size : 5×5×1mm
Frequency : HF/UHF
Chip : ICODE Slix 2K (HF), R6P (UHF)
Protocol : ISO14443A/ISO18000-6C
Application : Asset tracking, metal instrument management etc
MOQ : 500 pcs

Inquiry Now

WhatsApp Now

Product Details
Specification
Video
Download

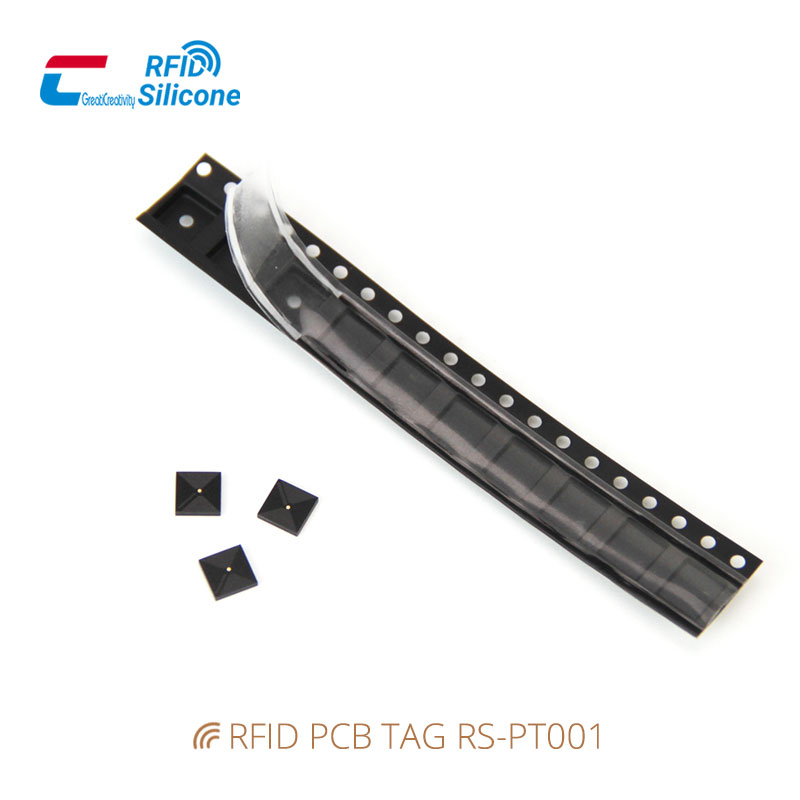

5×5mm Micro PCB RFID tag RS-RPT01

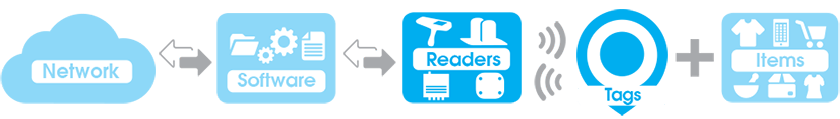

How does RFID Tags Work

PCB RFID tag RS-RPT01 is an industrial-grade special smallest rfid tag with anti-metal. Both HF(13.56MHz) and UHF(860-960MHz) chips are optional. Industrial PCB micro RFID tags are featured with high temperature resistance, corrosion resistance, waterproof, anti-metal and liquid friendly. Customized anti-metal smallest RFID tags in various sizes and shapes, easy to install and stable in performance. Request A Quote!

RFIDSilicone smallest RFID tag is ideal for RFID tracking solutions for small tools, precision instruments, pharmaceutical reagents, surgical instruments, electronics, weapons and other metal items.

Tool & Instrument Tracking
Metal Items Inventory
Biological Reagent Tracking
IT Equipments Tracking

Small PCB UHF tags are durable and unbreakable, often used for optimal performance when attached to objects on metal surfaces. Usually, RFID PCB tags are installed on items by adhesive backing, welding, nail tightening, etc., which are simple and convenient to use. Usually, RFID PCB tags are installed on items by adhesive backing, welding, nail tightening, etc., which are simple and convenient to use. Get A Free Sample!

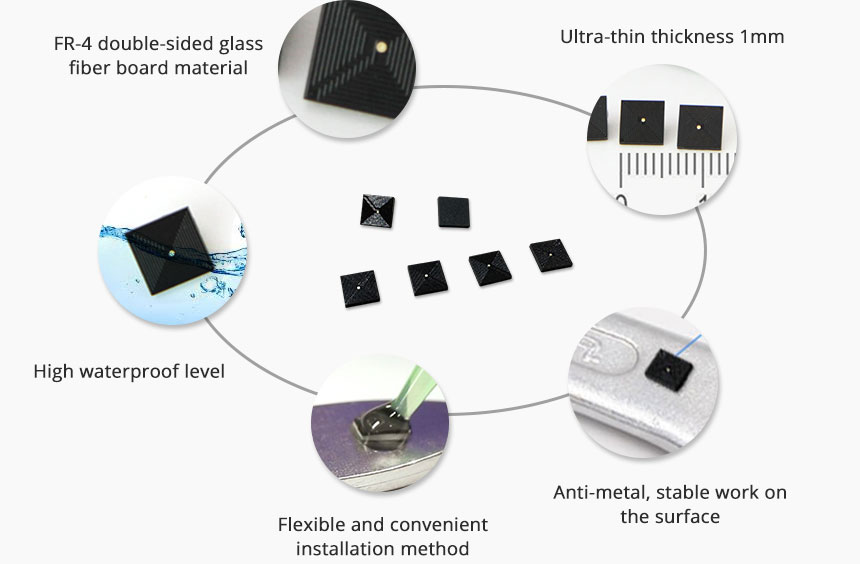

Product Features

Ultra-micro size, embedded in various size devices

Anti-metal, can work on metal surface

Corrosion and Acid resistance

High temperature resistance

Industrial grade waterproof UHF PCB Smallest RFID Tag

Industrial waterproof

Permanently mark your device after packaging with RFID PCB Tags

Once encapsulated, permanently mark your device

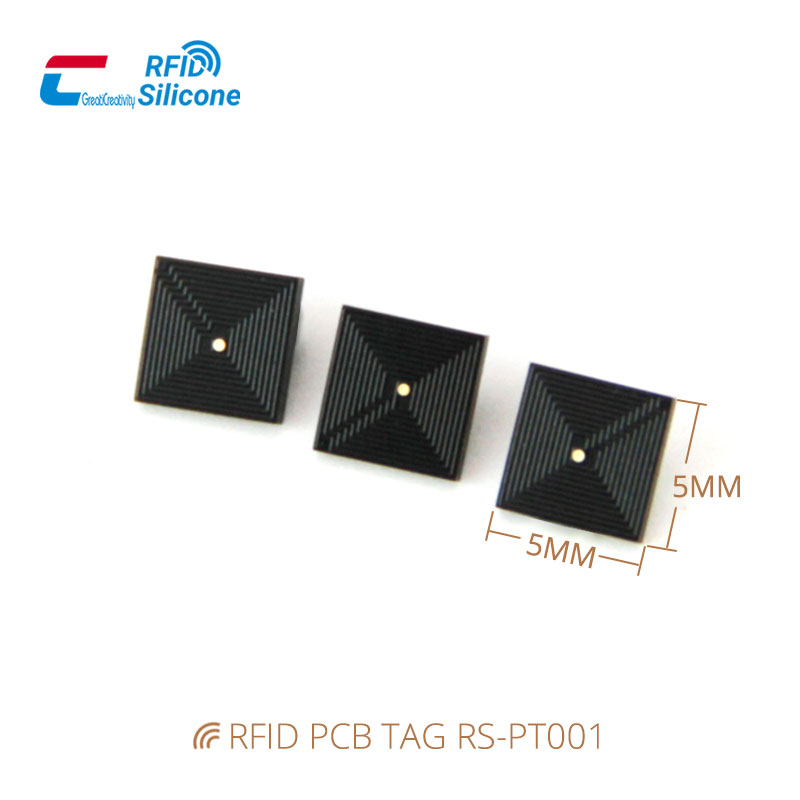

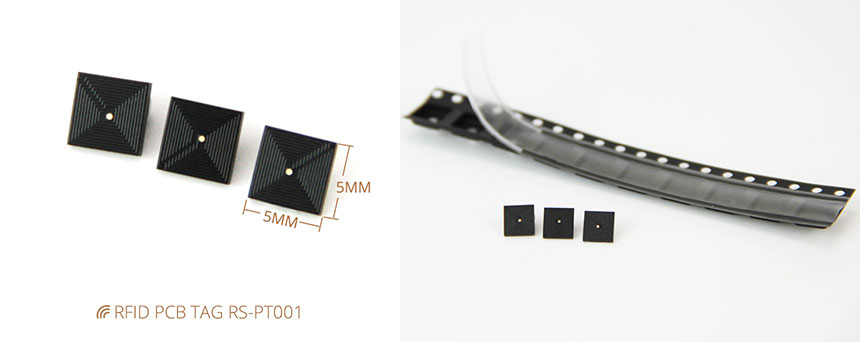

Product Size Size of UHF PCB Smallest RFID TagRS-RPT01

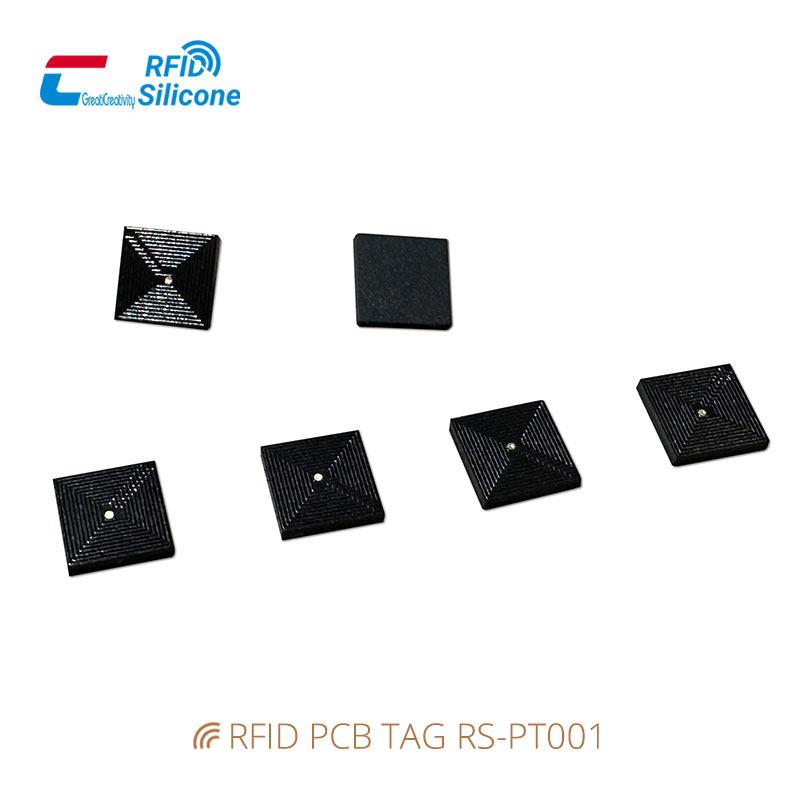

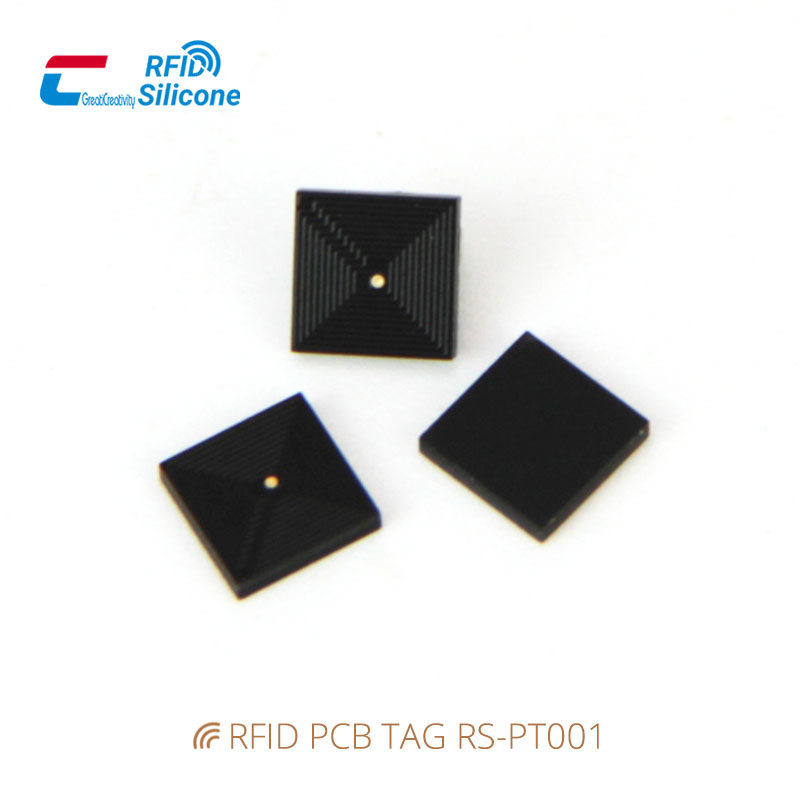

Product Details Details of 1mm thick Micro PCB UHF Tag

Product Spec.

Model	RS-RPT01
Material	PCB (FR4 + epoxy layer)
Size	5×5×1mm, 7×7×1mm, 8×8×1mm or customized
Frequency	HF 13.56MHz, UHF 860MHz-960MHz
Chip	HF chips: ICODE Slix; UHF chip: R6P
Reading distance	HF 1CM, UHF 3-6M approx.
Application	Biological reagents, PCB electronic products, molds, packaging fabrics, liquid scenes, precision instruments, etc.
MOQ	500pcs
Sample	Free stock sample available for your testing.

What a Smallest PCB RFID Tag!

You want it?

Contact [email protected] now!

Stock Testing samples ready for you.

Custom Micro RFID NFC Tags for Tracking Now!

Micro RFID tags have a wide range of applications, from military to transportation, logistics etc. Request A Quote!

Product name		Anti-metal PCB Smallest RFID Tag 5*5mm NFC/UHF Micro Tags
Model		RS-RPT01
Material		PCB (FR4 + epoxy layer)
Size		5×5×1mm, 7×7×1mm, 8×8×1mm or customized
Frequency		HF 13.56MHz or UHF 860-960Mhz
Operating Mode		Passive
Chips		HF: ICODE-SLIX 2k; UHF: MONZA R6/R6-P
Read distance		1cm(HF); 1m(UHF, by handheld reader)
Operating temperature		-40~85℃
Mechanical strength		＞20N
Installation Method		Screw, rivet, glue, or 3M300LSE tape (standard)
Application		Biological reagents, PCB electronics, molds, packaging fabrics, liquids scenes, precision instruments, etc.
MOQ		500pcs
Packaging		100pcs/bag, 10bags/case, 20 cases/carton
