Anti-metal · Industrial-grade PCB tag · Long read range · Durability · Waterproof IP68
RFID tag for asset tracking is made of robust FR-4 PCB and features anti-metal design. With meets RoHS & REACH requirements, CE compliant and built-in Alien Higgs-3 chip, it is ensuring stable performance for vehicle parts management and general asset management.
RFID tag for asset tracking offer a lower-cost, more intelligent solution for automotive parts management.. CXJ RFIDSilicone provides custom RFID PCB tags in various specifications, along with other RFID/NFC products like wristbands, NFC keychains, RFID silicone wristbands, and so on.

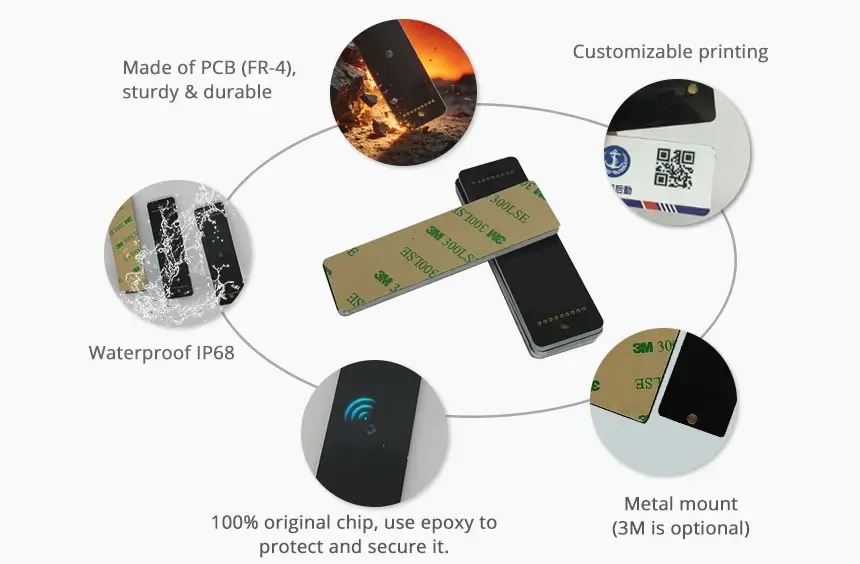

Made of PCB, sturdy and durable.
Waterproof IP68.
Complies with REACH, RoHS, and CE standards.
It can operate at temperatures between -40℃ and 100℃.
Chemical resistant.
Size, color, printing, 3M adhesive backing are optional.
|
Model |
RS-PT7020 |
|
Material |
FR4 (PCB) |
|
Size |

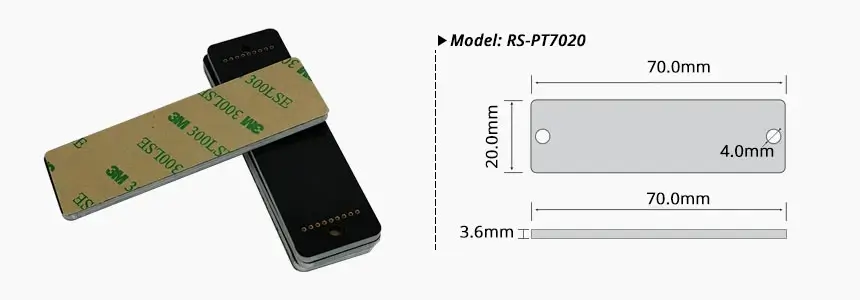

70x20mm, (Hole: D4mm) |
|
Thickness |
3.6mm |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Alien Higgs-3 |
|
Reading distance |
Up to 6.3~10.5M approx. (It depends on reader, tags and environment etc) |
|
Options |
Adhesive Backing, programmable, UID-provided |
|
Application |
Vehicles parts management, Asset management, etc.. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Industrial-grade UHF PCB RFID anti-metal tags, built for durability and long-range performance. Request A Quote!
|
Product name |
Anti-metal PCB RFID Tag for Asset Tracking Wholesaler |
|||||
|
Model |
RS-PT7020 |
|||||
|
Material |
FR4 (PCB) |
|||||
|
Size |
70×20×3.6mm |
|||||
|
Color |
Black (Red, Blue, Green, White) |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Alien Higgs-3 |
|||||
|
Options |
Programmable, UID-provided |
|||||
|
Read distance |
Up to 6.3~10.5m approx. (It depends on reader, tags and environment etc) |
|||||
|
Operating temperature |
-40°С to +100°С |
|||||
|
Storage temperature |
-40°С to +150°С |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Adhesive, Screw |
|||||
|
Application |
Vehicles parts management, Asset management, etc.. |
|||||
|
Certifications |
Reach Approved, RoHS Approved, CE Approved |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
