Ultra-micro · Industrial grade HF tag · Anti-metal · Waterproof IP67 · Weather resistant

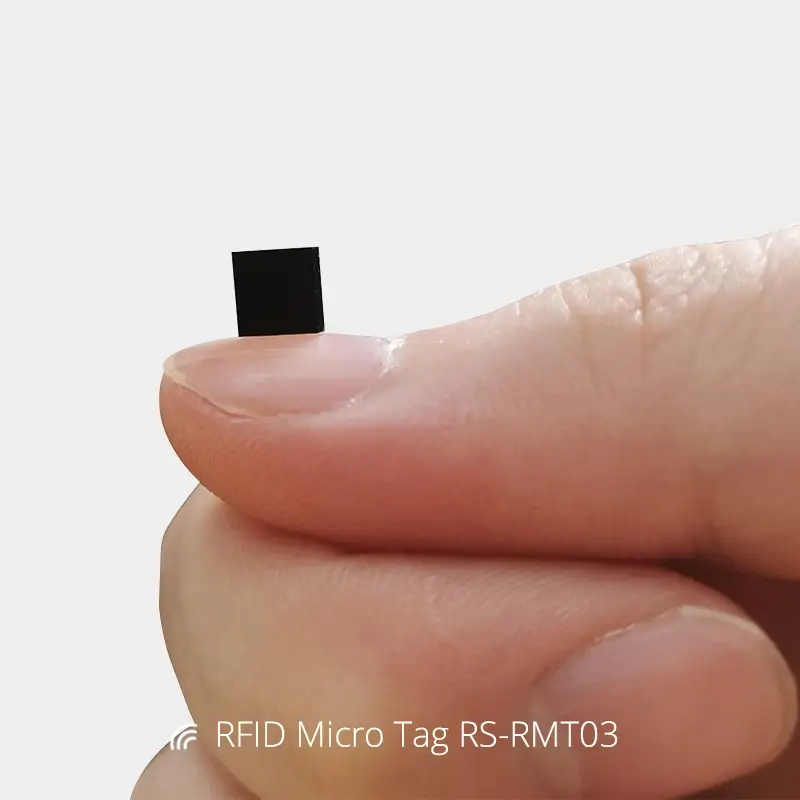

This micro NFC tag, with its ultra-small size of 7*7*0.9mm, can be embedded within products without altering their appearance. The MICRO NFC tag is made with PCB technology, making it robust, durable, and highly waterproof. An anti-metal version is also available for use with metal objects.

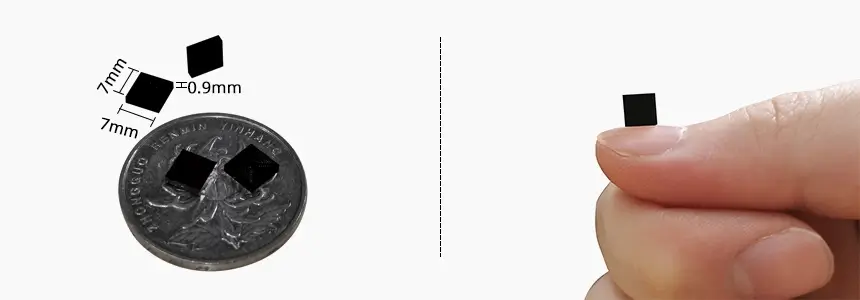

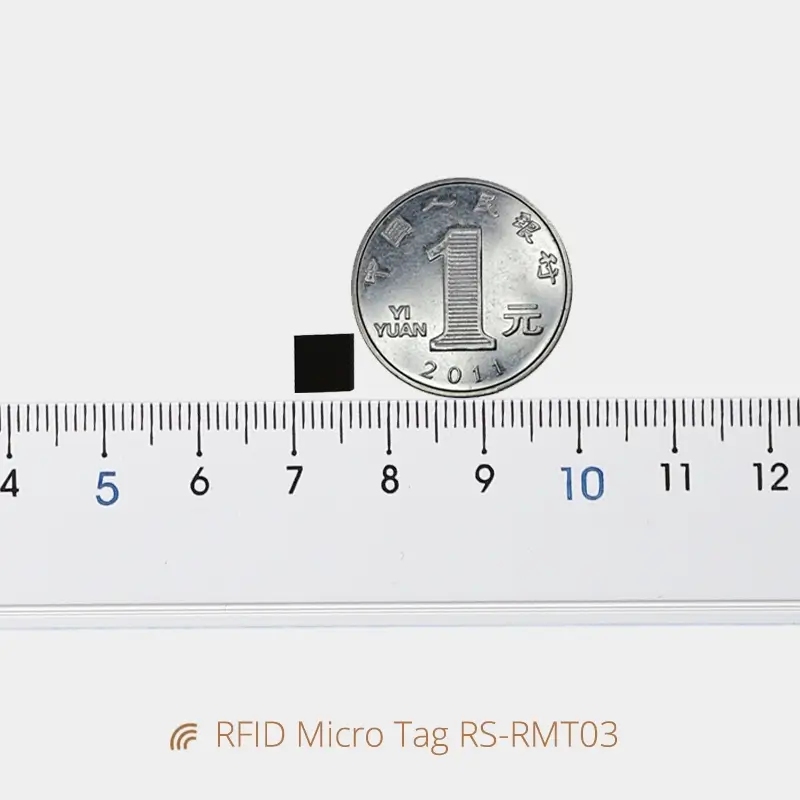

This ultra-compact MICRO NFC TAG is crafted from a robust PCB substrate. Measuring only 7x7x0.9mm, its minimal footprint allows for discreet integration into small tools, industrial assets, and electronic devices. CXJ RFID micro tags are available in various sizes and frequencies. Please contact us for more information.

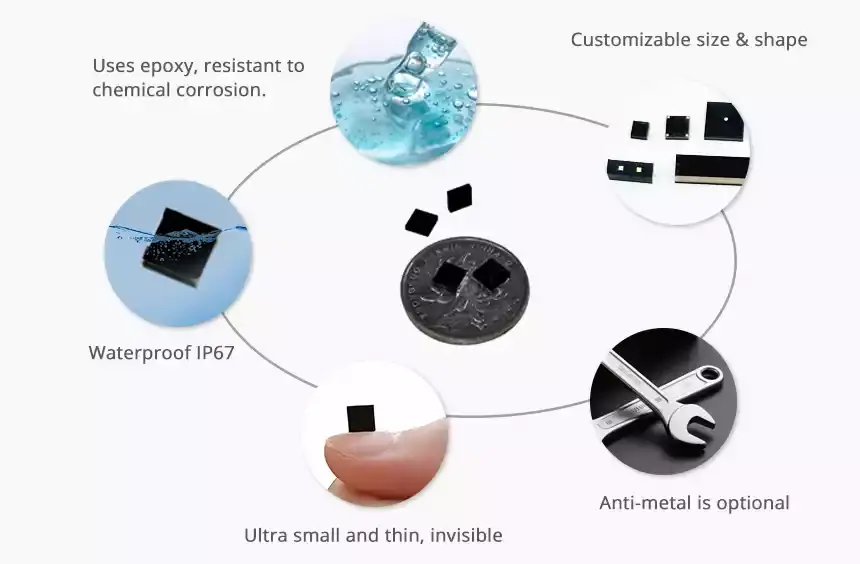

Ultra-micro size, embedded in various size devices
Waterproof IP67
Corrosion and Acid resistance
Anti-metal is optional
High Temperature Resistant
Micro NFC tags for remote control
|
Model |
RS-RMT03 |
|
Material |
PCB (FR4 + epoxy layer) |
|
Size |
7×7×0.9mm, 8×8×0.9mm, or customized |
|
Frequency |
HF 13.56MHz |
|
Chip |
NTAG 213, NTAG216, I CODE SLIX, SLIX2 |
|
Options |
Anti-Metal, programmable, UID-provided |
|
Reading distance |
HF 1CM |
|
Options |
Anti-Metal, programmable, UID-provided |
|
Application |
Embedded in toys, remote controls, car keys, etc. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Micro RFID tags have a wide range of applications, from military to transportation, logistics etc. Request A Quote!
|
Product name |
Anti-metal Micro NFC Tag IP67 Waterproof PCB HF tags Supplier |
|||||
|
Model |
RS-RMT03 |
|||||
|
Material |
PCB (FR4 + epoxy layer) |
|||||
|
Size |
7×7×0.9mm, 8×8×0.9mm or customized |
|||||
|
Frequency |
HF 13.56MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
NTAG 213, NTAG216, I CODE SLIX, SLIX2 |
|||||
|
Options |
Anti-Metal, programmable, UID-provided |
|||||
|
Read distance |
1cm(HF) |
|||||
|
Operating temperature |
-40~85℃ |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Screw, rivet, glue, or 3M300LSE tape (standard) |
|||||
|
Application |
embedded in toys, remote controls, car keys, etc. |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
