Ultra-micro · Industrial grade UHF tag · Anti-metal · Waterproof IP67 · Weather resistant
The PCB mini RFID tag can be optionally made with anti-metal properties. Its ultra-small size allows it to be discreetly used on various tools, such as scalpels and screwdrivers. These UHF RFID micro tags can be used for the management of these tools.
The mini RFID tag is an excellent management tool and can also add more value to other products, such as adding fun to toys. CXJ's mini RFID tags can provide you with solutions in this area. More sizes and frequencies of micro tags are available; please inquire for details.

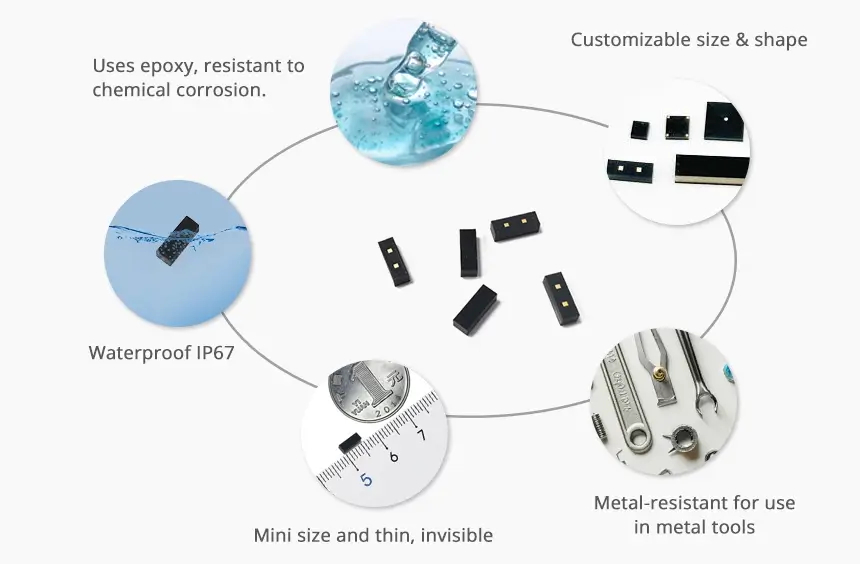

Ultra-micro size, embedded in various size devices
Waterproof IP67
Corrosion and Acid resistance
Anti-metal is optional
High Temperature Resistant
Used for the management of metal tools.
|
Model |
RS-RMT05 |
|
Material |
PCB |
|

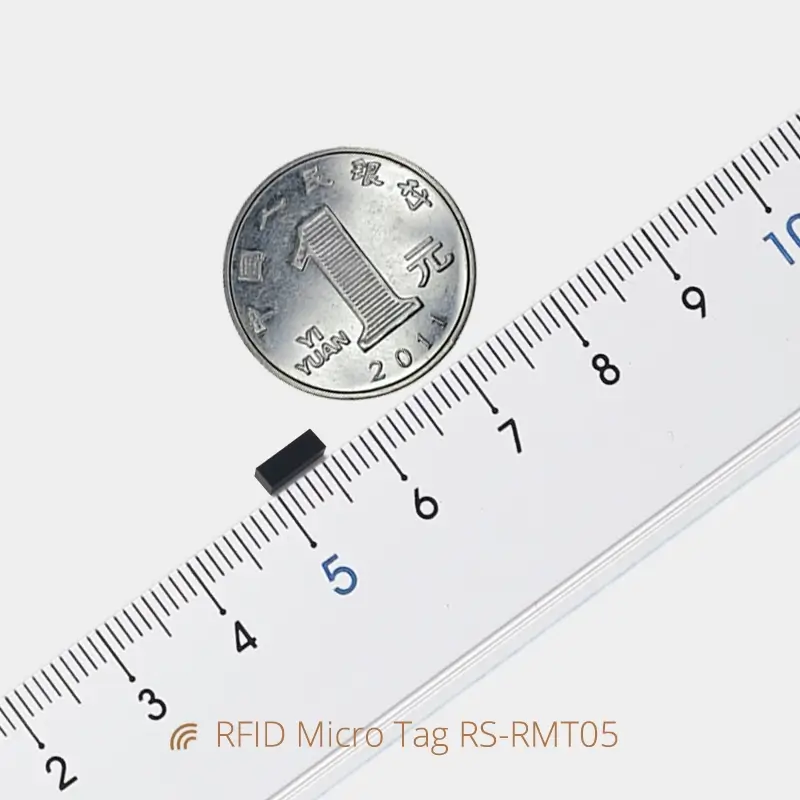

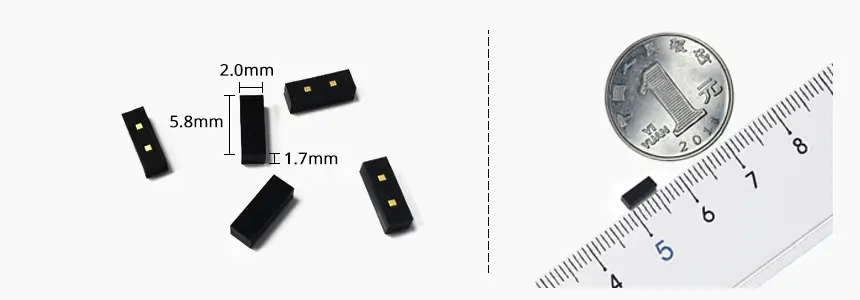

Size |
5.8×2×1.7mm |
|
Frequency |
UHF 860~960MHz |
|
Chip |
Impinj Monza R6P |
|
Reading distance |
UHF 1-6M |
|
Options |
Anti-metal, programmable, UID-provided |
|
Application |
Medical tools, metal tool management, etc. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Micro RFID tags have a wide range of applications, from military to transportation, logistics etc. Request A Quote!
|
Product name |
Anti-Metal PCB Mini RFID Tags R6P Chip UHF Tags Supplier |
|||||
|
Model |
RS-RMT05 |
|||||
|
Material |
PCB |
|||||
|
Size |
5.8×2×1.7mm |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Impinj Monza R6P |
|||||
|
Options |
Anti-metal, programmable, UID-provided |
|||||
|
Read distance |
1-6m UHF |
|||||
|
Operating temperature |
-40~85℃ |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Screw, rivet, glue, or 3M300LSE tape (standard) |
|||||
|
Application |
Medical tools, metal tool management, etc. |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
