Ultra-micro · Industrial grade UHF tag · Anti-metal · Waterproof IP67 · Weather resistant
These tiny RFID tags, embedded with NXP UCODE 9 chips, can be used for managing and tracking products and small tools. They can be made metal-resistant for use with tools made of metal materials. The RFID micro tags support long-range reading, helping to improve inventory efficiency and reduce costs.
Tiny RFID tags, with their ultra-small size and wide range of applications, help users improve inventory efficiency at a low cost. CXJ's mini RFID tags can provide you with solutions in this area. More sizes and frequencies of micro tags are available; please inquire for details.

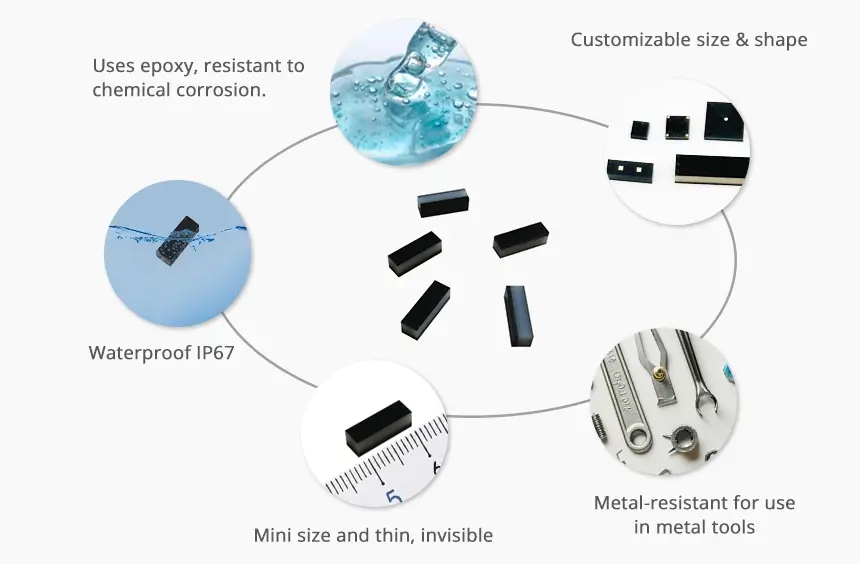

Ultra-micro size, embedded in various size devices
Waterproof IP67
Corrosion and Acid resistance
Anti-metal is optional
High Temperature Resistant
Used for the management of metal tools.
|
Model |
RS-RMT06 |
|
Material |
PCB |
|

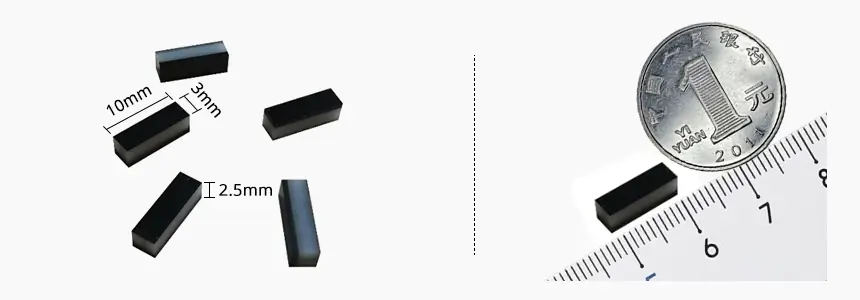

Size |
10×3×2.5mm, 10×5×2.5mm |
|
Frequency |
UHF 860~960MHz |
|
Chip |
NXP UCODE 9 |
|
Reading distance |
UHF 1-6M |
|
Options |
Anti-metal, programmable, UID-provided |
|
Application |
Medical tools, metal tool management, etc. |
|
MOQ |
500pcs |
|
Sample |
Free stock sample available for your testing. |
Contact info@rfidsilicone.com now!
Stock Testing samples ready for you.
Micro RFID tags have a wide range of applications, from military to transportation, logistics etc. Request A Quote!
|
Product name |
Anti-Metal Tiny RFID Tags PCB UHF RFID tags Manufacturer |
|||||
|
Model |
RS-RMT06 |
|||||
|
Material |
PCB |
|||||
|
Size |
10×3×2.5mm, 10×5×2.5mm |
|||||
|
Frequency |
UHF 860~960MHz |
|||||
|
Operating Mode |
Passive |
|||||
|
Chips |
Impinj Monza R6P |
|||||
|
Options |
Anti-metal, programmable, UID-provided |
|||||
|
Read distance |
1-6m UHF |
|||||
|
Operating temperature |
-40~85℃ |
|||||
|
Mechanical strength |
＞20N |
|||||
|
Installation Method |
Screw, rivet, glue, or 3M300LSE tape (standard) |
|||||
|
Application |
Medical tools, metal tool management, etc. |
|||||
|
MOQ |
500pcs |
|||||
|
Packaging |
100pcs/bag, 10bags/case, 20 cases/carton |
|||||
|
Common Chip Types |
Protocol |
Capacity |
Anti-collision |
Function |
|
|
Available |
TK4100 |
/ |
64 bit |
No |
Read Only |
|
EM4200 |
/ |
128 bit |
No |
Read Only |
|
|
EM4305 |
/ |
512 bit |
No |
Read/Write |
|
|
T5577 |
/ |
330 bits |
No |
Read/Write |
|
|
Available |
NTAG® 213 |
ISO14443A |
180 byte |
No |
Read/Write |
|
NTAG® 215 |
ISO14443A |
540 byte |
No |
Read/Write |
|
|
NTAG® 216 |
ISO14443A |
924 byte |
No |
Read/Write |
|
|
MIFARE® Classic® 1K |
ISO14443A |
1 KB |
No |
Read/Write |
|
|
MIFARE® Classic® 4K |
ISO14443A |
4 KB |
No |
Read/Write |
|
|
MIFARE® Plus® S 1K |
ISO14443A |
2 KB/4 KB |
No |
Read/Write |
|
|
MIFARE Ultralight® EV1 |
ISO14443A |
48 byte |
No |
Read/Write |
|
|
MIFARE Ultralight® C |
ISO14443A |
144 byte |
No |
Read/Write |
|
|
ICODE® SLIX |
ISO15693 |
896 bit |
Yes |
Read/Write |
|
|
Available |
Alien H3 |
ISO18000-6C |
512 bit |
Yes |
Read/Write |
|
Other chips are also available. |
|||||
