The Benefits of Using Marathon UHF RFID Tags for Competitions

Published byEdith atNovember 28,2022

In the competition, athletes wear marathon UHF RFID tags, which can greatly improve timing efficiency.

RFID technology is fully utilized in sports competition

RFID technology is fully utilized in sports competitions to realize the intelligent collection and management of information during the competition. UHF RFID tags are not only used in marathons, but also various road races, ski races, and decathlon competitions. Participating athletes carry personal information RFID tags. By setting the starting point and ending point, the organizer, spectators, and referees can collect information through data collection points, and the efficiency of calculating time can be greatly improved.

How RFID Timing System Works In Sports Activities?

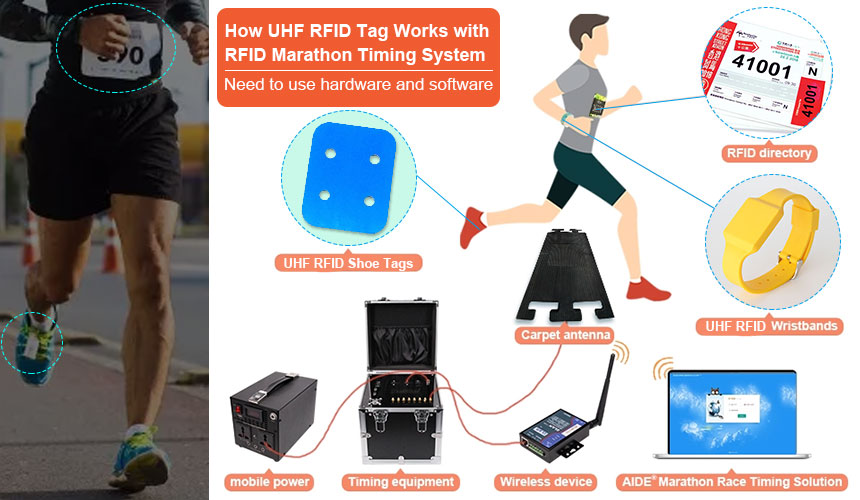

How UHF RFID Tag Works with RFID Marathon Timing System

Working principle: First, use UHF readers to write UHF tags with athlete information, and distribute RFID tags to corresponding unique athletes. Then, use UHF RFID fixed reader to connect the feeder, etc., and install it at the starting line, checkpoint and end point. When the athlete passes the reading and writing device, it will read the ID of the RFID tag carried by the athlete, record the time at that time, the software system will process and display the information, upload the data to the calculation time system of the game, and the system will calculate the final result of the game.

So what UHF RFID tags that are widely used in sports competitions? How do they work? Let’s find them out below right now!

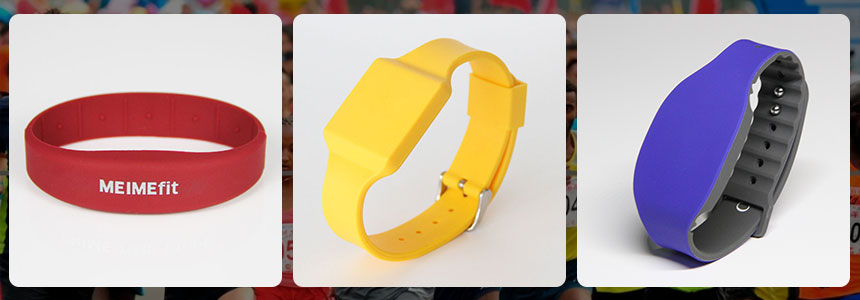

1. UHF RFID Wristbands for Matathon

UHF RFID Silicone Wristbands for Matathon

The Spec. of UHF RFID Wristbands for Matathon
Item UHF RFID Silicone Wristbands
Material 100% ECO silicone
Size 250×19mm, or customized shape upon request.
RFID chip MONZAR6/R6-P
Frequency 860—960MHz
Color options Yellow, red, pink, yellow, green, blue, etc.
Read distance 1-10M
Waterproof IP68
Work mode Read/Write
Storage time >10years
Erasable times >100,000times
Work temperature -30℃-70℃
Installation mode It is worn on the athlete's wrist.

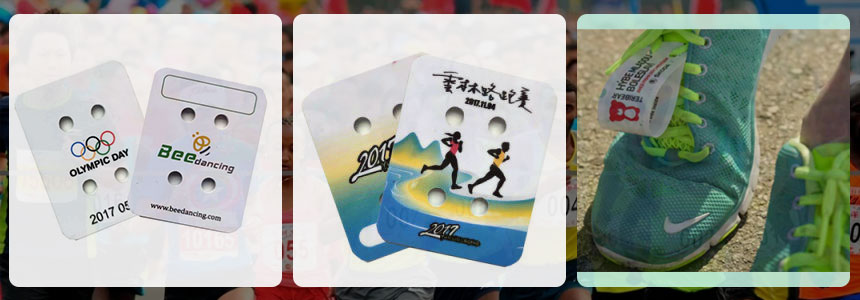

2. Marathon UHF RFID shoe tags

The use of Marathon UHF RFID shoe tags is bound to shoelaces, which does not affect the comfort of the athletes, allowing participants to fully concentrate on the game without hindering its normal performance and affecting the results of the game. The performance of Marathon UHF RFID shoe tags is great, with excellent and accurate reading. In addition, the marathon RFID shoe labels can be customized to print the brand LOGO of the organizer and sponsor, making their brand memorable.

The advantages of Marathon UHF RFID shoe tags: the accuracy of reading, reliability and simplicity of operation make this RFID shoe tag more and more widely used in marathons and running competitions all over the world.

Marathon UHF RFID shoe tags

The Spec. of UHF RFID shoe tags
Item UHF RFID Silicone Wristbands
Material PVC
Size 56×44mm, or customized shape upon request.
RFID chip Impinj Monza R6
Frequency 860—960MHz
Memory capacity  96bits EPC
Read distance Approx. 1-10M
Waterproof IP65
Work mode Read/Write
Storage time >10years
Erasable times >100,000times
Work temperature -30℃-70℃
Installation mode Tied to the shoelaces

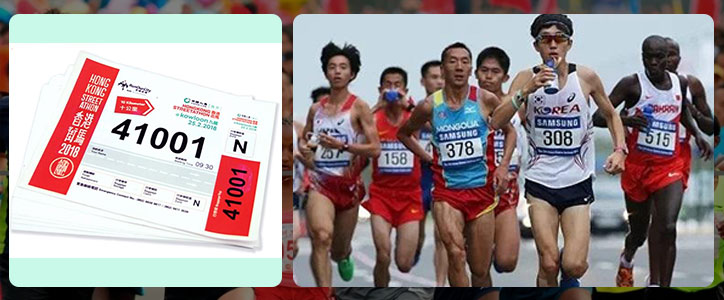

3. UHF RFID Bib Tag with Alien H3 for RFID Timing System

How to use our UHF Marathon RFID Bib Tag? Attach an RFID bib tag on the athlete's chest is ok ! and of course, the tags can be customized in size and your logo printing!

UHF Marathon RFID Race Number Tag

The Spec. of RFID bib tag(1)
Item UHF RFID Bib Tag
Material PET
Size 200×150mm or customized.
RFID chip Impinj Monza R6
Frequency 860—960MHz
Memory capacity  96bits EPC
Read distance Approx. 1-10M
Waterproof IP65
Work mode Read/Write
Storage time >10years
Erasable times >100,000times
Work temperature -30℃-70℃
Installation mode Attached to the clothes on the athlete's chest.

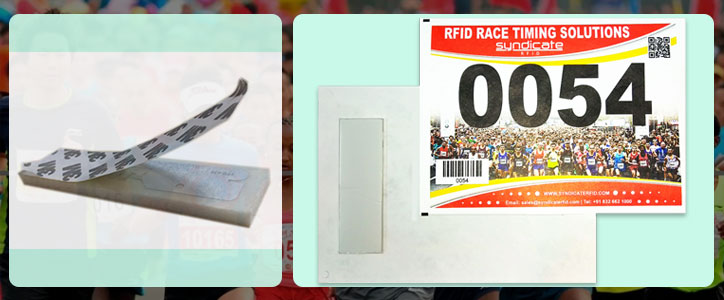

UHF RFID Bib Tag with Alien H3

The Spec. of RFID bib tag(2)
Item UHF RFID Bib Tag with Alien H3
Material Foam with shelf adhensive
Size 100×30×0.2mm or customized.
RFID chip ALIEN H3
Frequency 860—960MHz
Memory capacity  96bits EPC,512bit User
Read distance Approx. 1-10M
Waterproof IP65
Work mode Read/Write
Storage time >10years
Erasable times >100,000times
Work temperature -30℃-70℃
Installation mode Paste onto the number bib of cloth.

The RFID marathon solution can accurately and reliably record the start and finish time, the time in the middle of the race and various situations, which saves human resources, and also guarantees the fairness of the race and accurate athlete results.

The above UHF RFID tags have a wide range of applications. RFID solutions are designed according to different functional requirements, which can be used for warehouse management, asset equipment management, file management, logistics management, luggage management, catering tray management, parking lot vehicle management, etc.

Welcome to contact us for more details of rfid solution for marathon! Contact us: [email protected]
